Shrink Packing Machine 260 Table Top
Technical Specification
| Model | SPS 260 |
| Tunnel Size (W x H) mm | 250X150 |
| Voltage(V/Hz) | 220/50 |
| Power Consumption (KW) (Start up Load) | 3.3 |
| Power Consumption (KW) (Running Load) | 1.75 |
| Conveyor Loading (Kg) | 5 |
| Overall Dimension | 800x450x400 |
| Speed (m/min.) | 0 ~ 6 |
| Heating Time (minutes) | 5 |
| Cooling Time (minutes) | 15 |
| Net Weight | 40 |
Shrink Packing Machine 2816 Table Top
Technical Specification
| Model | SPS 2816 |
| Tunnel Size (W x H) mm | 250X150 |
| Voltage(V/Hz) | 220/50 |
| Power Consumption (KW) (Start up Load) | 3.3 |
| Power Consumption (KW) (Running Load) | 1.75 |
| Conveyor Loading (Kg) | 5 |
| Overall Dimension | 800x450x400 |
| Speed (m/min.) | 0 ~ 6 |
| Heating Time (minutes) | 5 |
| Cooling Time (minutes) | 15 |
| Net Weight | 40 |
Shrink Packing Machine 3020 Hualian
Technical Specification
| Model | SPS 3020 |
| Tunnel Size (W x H) mm | 300 x 200 |
| Heater | Fin type |
| Voltage(V/Hz) | 220/50 |
| Power Consumption (KW) (Start up Load) | 4.5 |
| Power Consumption (KW) (Running Load) | 2.5 |
| Conveyor Loading (Kg) | 15 |
| Heating Furnace | 800x300x200 |
| Overall Dimension | 1150x560x1170 |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 5 |
| Cooling Time (minutes) | 15 |
| Net Weight | 70 |
Shrink Packing Machine 3020 Economic
Technical Specification
| Model | SPS 3020 S R |
| Tunnel Size (W x H) mm | 300 X 200 |
| Voltage(V/Hz) | 220 / 50 |
| Power Consumption (KW) (Start up Load) | 5 |
| Power Consumption (KW) (Running Load) | 3.75 |
| Conveyor Loading (Kg) | 10 |
| Overall Dimension (L*W*H) | 800x450x520 |
| Speed (m/min.) | 0 ~ 6 |
| Heating Time (minutes) | 5 |
| Cooling Time (minutes) | 15 |
| Net Weight | 45 |
Shrink Packing Machine 4525 Hualian
Technical Specification
| Model | SPS 4525 S |
| Tunnel Size (W x H) mm | 450 x 250 |
| Voltage(V/Hz) | 220/440 /50 |
| Power Consumption (KW) | 6.5 |
| Conveyor Loading (Kg) | 15 |
| Tunnel Size (LxWxh) (mm) | 900x450x50-250 |
| Overall Dimension (LxWxH) (mm) | 1200x610x1100 |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 10 |
| Cooling Time (minutes) | 15 |
| Net Weight | 90 |
Shrink Packing Machine 4525 Economic
Technical Specification
| Model | SP 4535 S |
| Tunnel Size (W x H) mm | 450 x 250 |
| Voltage(V/Hz) | 220/440 /50 |
| Power Consumption (KW) | 6.5 |
| Conveyor Loading (Kg) | 15 |
| Tunnel Size (LxWxh) (mm) | 900x450x50-250 |
| Overall Dimension (LxWxH) (mm) | 1200x610x1100 |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 10 |
| Cooling Time (minutes) | 15 |
| Net Weight | 90 |
Shrink Packing Machine 4535 Hualian
Technical Specification
| Model | SPS 4535 S |
| Tunnel Size (W x H) mm | 450 x 350 |
| Voltage(V/Hz) | 380/50 (3 PH) 220/60 (3 PH) |
| Power Consumption (KW) | 9.6 |
| Conveyor Loading (Kg) | 30 |
| Tunnel Size (LxWxh) (mm) | 1200x450x(50-350) |
| Overall Dimension | 1600x650x1200 |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 10 |
| Cooling Time (minutes) | 15 |
| Net Weight | 120 |
Shrink Packing Machine 4535 Dingye
Technical Specification
| Model | SPS 4535 S D |
| Tunnel Size (W x H) mm | 450 x 350 |
| Voltage(V/Hz) | 440 /50 |
| Power Consumption (KW) | 9.6 |
| Conveyor Loading (Kg) | 30 |
| Heating Furnace | 1200x450x350* |
| Overall Dimension | 1600x610x1100 |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 10 |
| Cooling Time (minutes) | 15 |
| Net Weight | 120 |
Shrink Packing Machine 4535 Hualian Extra Length
Technical Specification
| Model | SPS 4535 LX |
| Tunnel Size (W x H) mm | 1500 x 450 x 350 |
| Voltage(V/Hz) | 380/50 |
| Power Consumption (KW) | 16 |
| Conveyor Motor | 9000 |
| Heating Furnace | 1200x450x350* |
| Overall Dimension | 2000x650x1160* |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 10 |
| Cooling Time (minutes) | 15 |
| Feeding Conveyor (Extra Length) | 300mm outer |
| 200mm inner | -- |
| Blower | 2800rpm |
| Net Weight | 140 |
Shrink Packing Machine 6535 Hualian
Technical Specification
| Model | SPS 6535 |
| Tunnel Size (W x H) mm | SPS 6535 |
| Voltage(V/Hz) | 380 /50 |
| Power Consumption (KW) | 12.5 |
| Conveyor Loading (Kg) | 30 |
| Heating Furnace | 1200x650x50~350* |
| Overall Dimension | 1200x850x1340 |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 10 |
| Cooling Time (minutes) | 15 |
| Net Weight | 120 |
Shrink Packing Machine 6535 Economic
Technical Specification
| Model | SPS 6535 S R |
| Tunnel Size (W x H) mm | SPS 6535 S R |
| Voltage(V/Hz) | 380/50 |
| Power Consumption (KW) | 12.5 |
| Conveyor Loading(Kg) | 30 |
| Heating Furnace | 1200x650x50~350* |
| Overall Dimension | 1200x850x1340 |
| Speed (m/min.) | 0 ~ 10 |
| Heating Time (minutes) | 10 |
| Cooling Time (minutes) | 15 |
| Net Weight | 140 |
Shrink Packing Machine LDPE
Technical Specification
| Model | SP 4535 LDPE |
| Conveyor Load | 15 kg |
| Motor | 90 W |
| Voltage(V/Hz) | 380 /50 |
| Conveyor Type | Mesh |
| Shrink Oven Size | 1200x450x350 (mm) |
| Machine Size | 2200x700x1000(mm) |

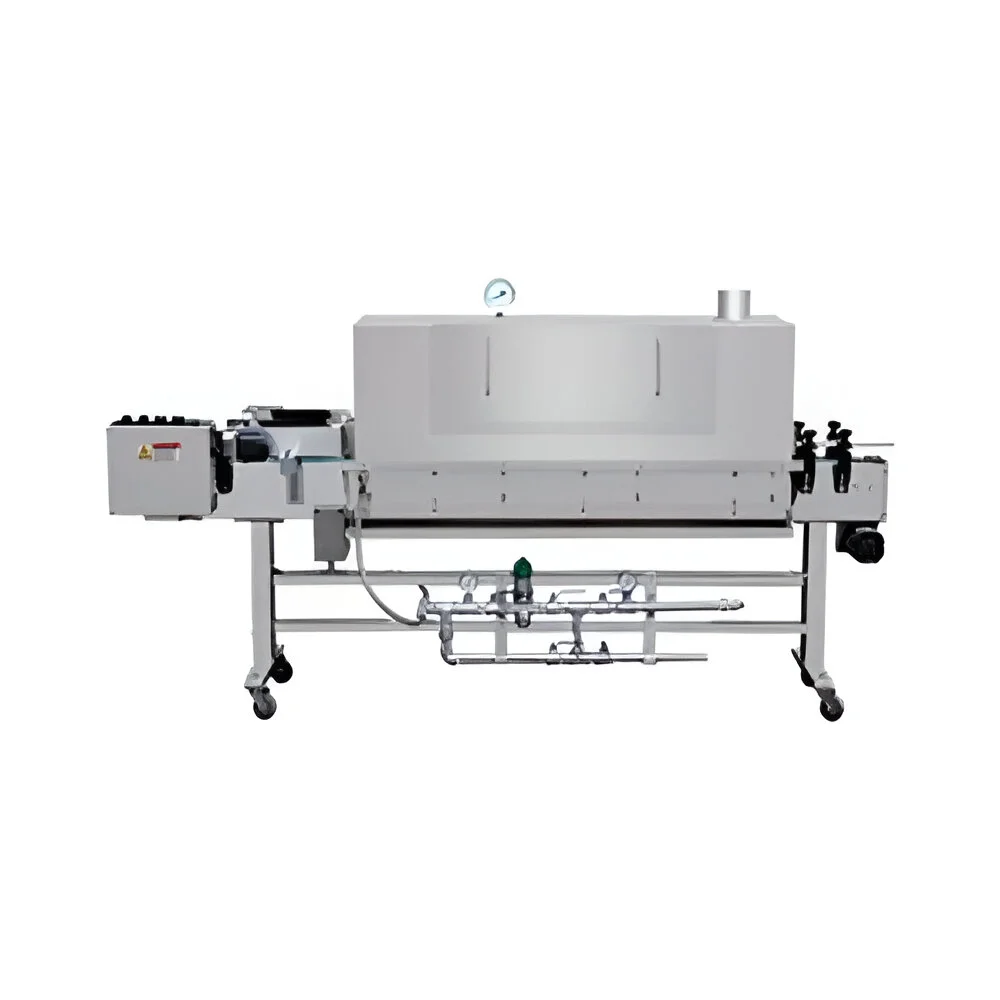

Steam Label Shrink Tunnel
Technical Specification
| Model | SP 1838 |
| Voltage | 220V/50HZ |
| Power | 150W |
| Weight | 150Kg |
| Tunnel Size | 1350*180*380mm |
| Capacity | 5000~15000B/H |
| Steam Pressure | 0.1Mpa |
| Steam Consumption | 24Kg/H |
| Shrink Temperature | 75~85° |
| Dimension (L*W*H) | 2400*430*1350mm |
| Steam Generator | |
| Power | 12/24 Kw |
| Electricity | 380v / 3ph |
| Pressure | 0.4 mpa |
| Volume | 27 L |
| Steam Production | 16/32 kg/h |
| Net Weight | 91 Kg |

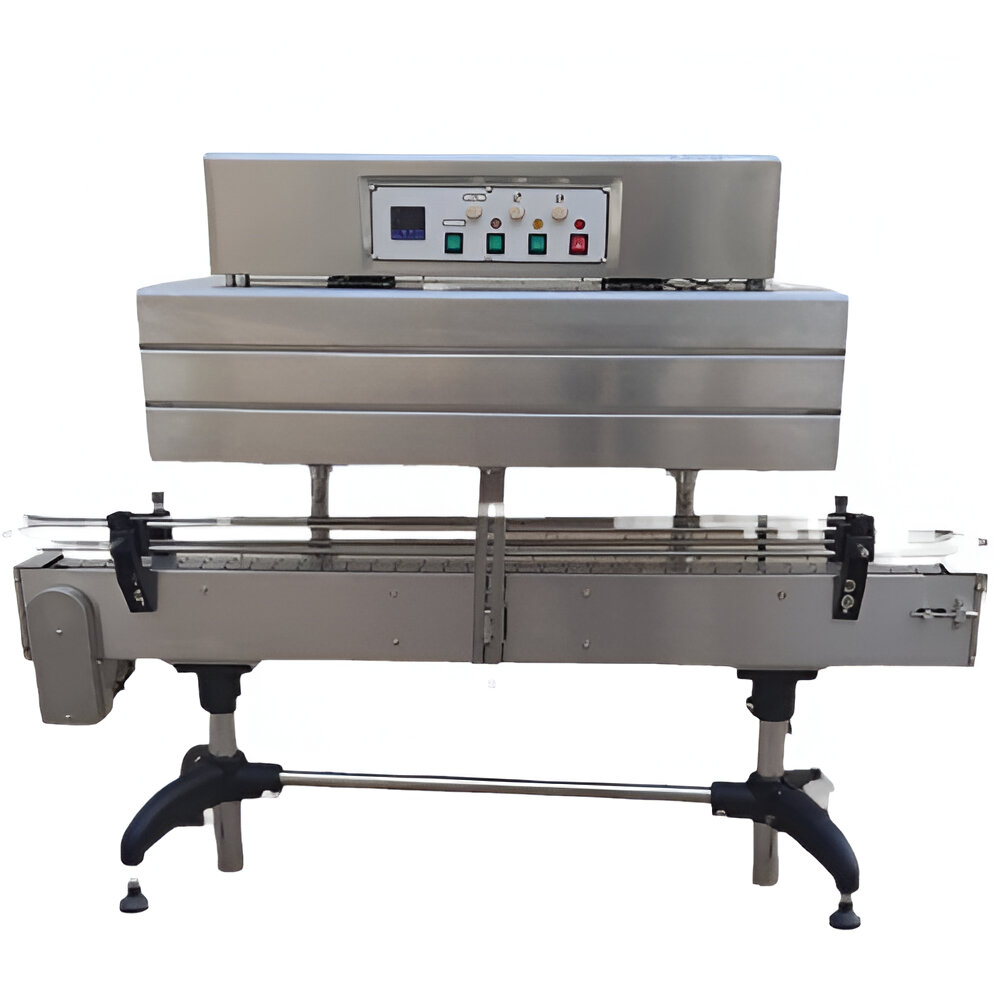

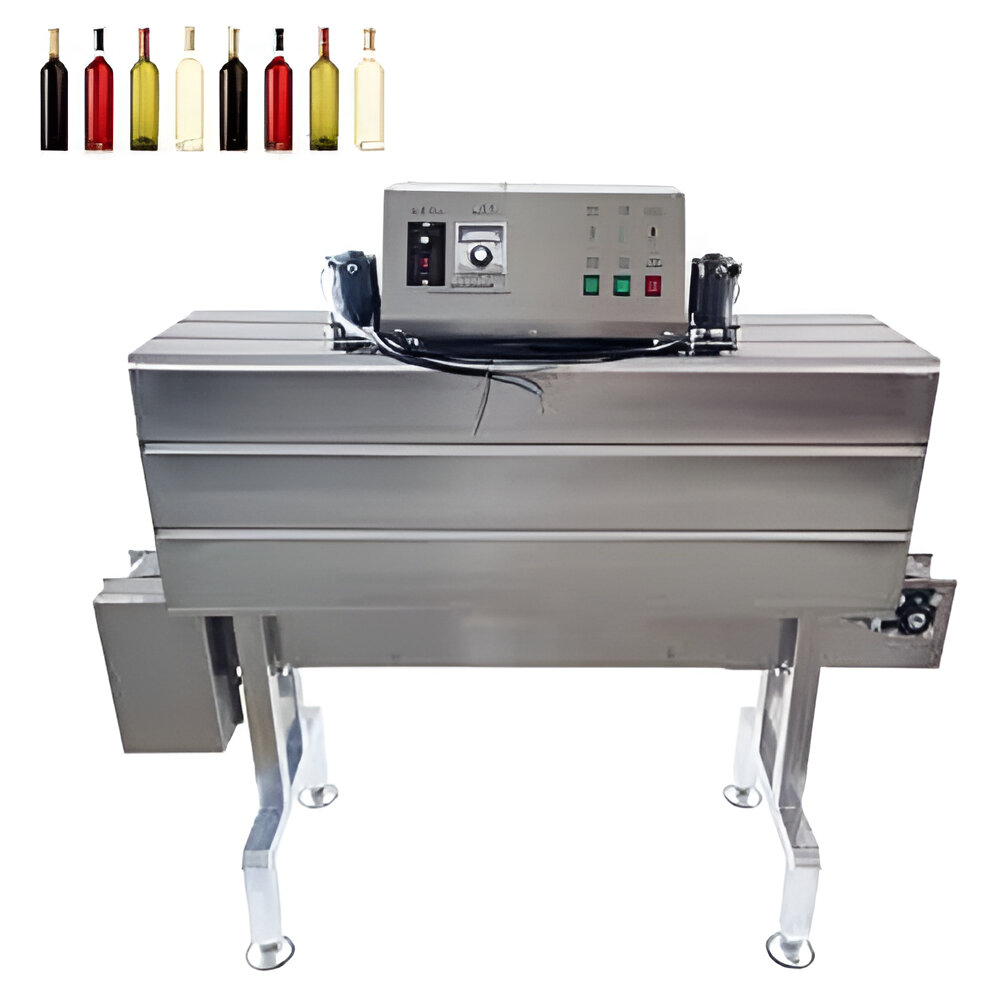

Label Shrink Tunnel For Bottles
Technical Specification
| Model | SP S 1538 B |
| Voltage | 220 V/ 50-60 Hz |
| Power | 8 kw |
| Tunnel Size (L x W x H) (mm) | 1000 x 150 x 380 |
| Max. Packing Size (mm) | ¢ 105 x 350 H |
| Conveyor Motor | AC90W/220V |
| Conveyor Speed | 0~10/m/min |
| 90W/220VMaximum Loading | 15 kgs |
| Shrink Film | POF, PVC, PP |
| Dimension (mm) | 1500 x 350 x 1500 |
| Net Weight | 96 kg |
Label Shrink Tunnel For Cap
Technical Specification
| Model | SP S 1538 C |
| Voltage | 220V/ 50-60HZ |
| Power | 7kw/td> |
| Tunnel Size (LxWxH)mm | 1000x150x150 |
| Max. Packing Size(mm) | ¢105x340H |
| Conveyor Motor | AC90W/220V |
| Conveyor Speed | 0-10m/min |
| Max. Loading | 15kg |
| Shrink Film | POF,PVC,PP |
| Weight(kg) | 90kg |
| Dimension(mm) | 1500x350x1500 |
Shrink Chamber Indian Make
Technical Specification
| Model | SPS-5540 |
| Voltage ( V/Hz) | AC 220 /50 |
| Power (kw) | 4 |
| Packing Speed(pcs/h) | 700 ~ 1000 |
| Max Packing Dimensions | 500 x 375 x 250 |
| Dimensions ( L XW X H) (mm) | 1945x 795 x 1080 |
| Weight (kg) | 80 |
