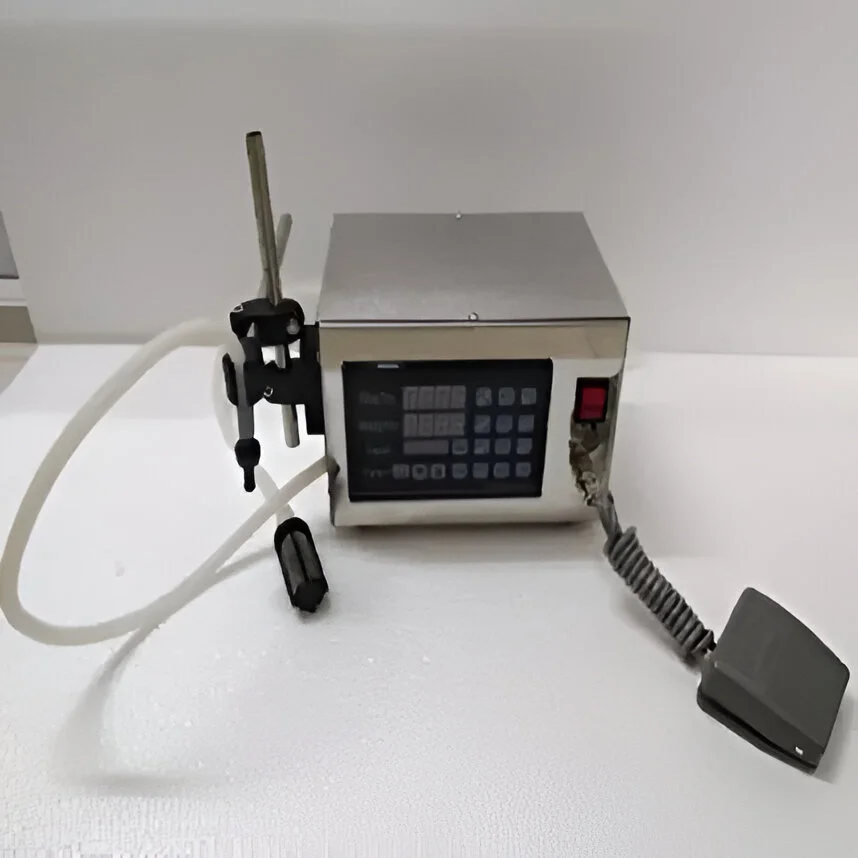

Mini Liquid Filling Machine Single Nozzle
Technical Specification
| Model | SPS MLF |
| Voltage Power | 110V -220 V / 50 - 60 Hz 40W |
| Maximum Runoff | 2000ml/M (Water) |
| Filling Range | 5 ml - 1000ml |
| Optimal Filling Range | 5 ml - 1000ml |
| Filling Precision | 2% |
Mini Liquid Filling Machine Double Nozzle
Technical Specification
| Model | SPS MLF D |
| Voltage Power | 110V -220 V / 50 - 60 Hz 40W |
| Maximum Runoff | 2000ml/M (Water) |
| Filling Range | 5 ml - 1000ml |
| Optimal Filling Range | 5 ml - 1000ml |
| Filling Precision | 2% |

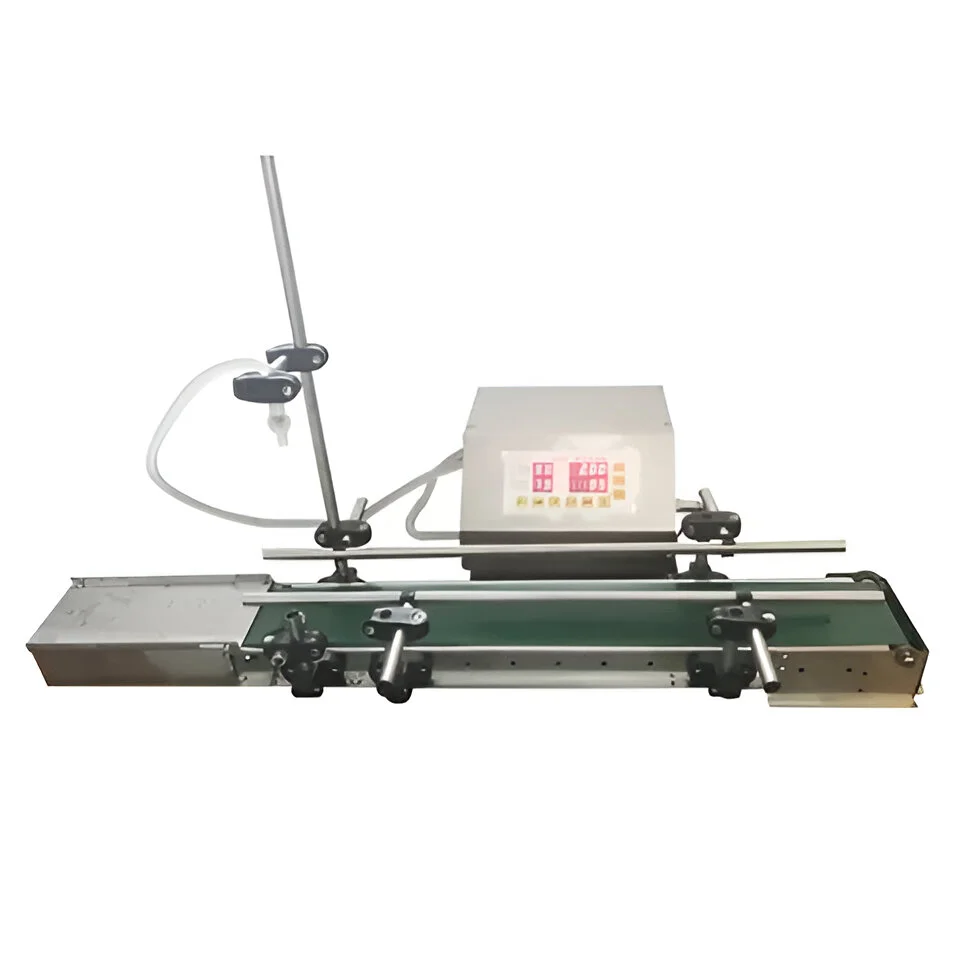

Online Mini Liquid Filling Machine
Technical Specification
| Model | SPS MLF -m ONLINE |
| Voltage | 110-220V, 50-60-Hz |
| Power | 60 Watt |
| Filling Flow Rate | 3.0 LPM (3000 ml) |
| Mini Filling Volume | 1 ml |
| Filling Accuracy | #1% |
| Conveyor Size | 600 mm ()*81 mm(W) |
| Filling Nozzle Size | 7 mm(OD) *20 mm (L) |
| Filling Speed | Adjustable |
| Anti-Dripping Function | Available |
| Intelligent Sensor Distance | 10 mm |
| Distance of Intelligent Induction | 0-5 mm |
| Maximum Temperature | 600 C |
| Suitable Bottle Size | Suitable Bottle Size |
| Dimension (LxWxH) | 63.6x 16.6x17.9 Centimeter (Approx) |
| Dimension (LxWxH) | 3.6 Kg (Approx) |

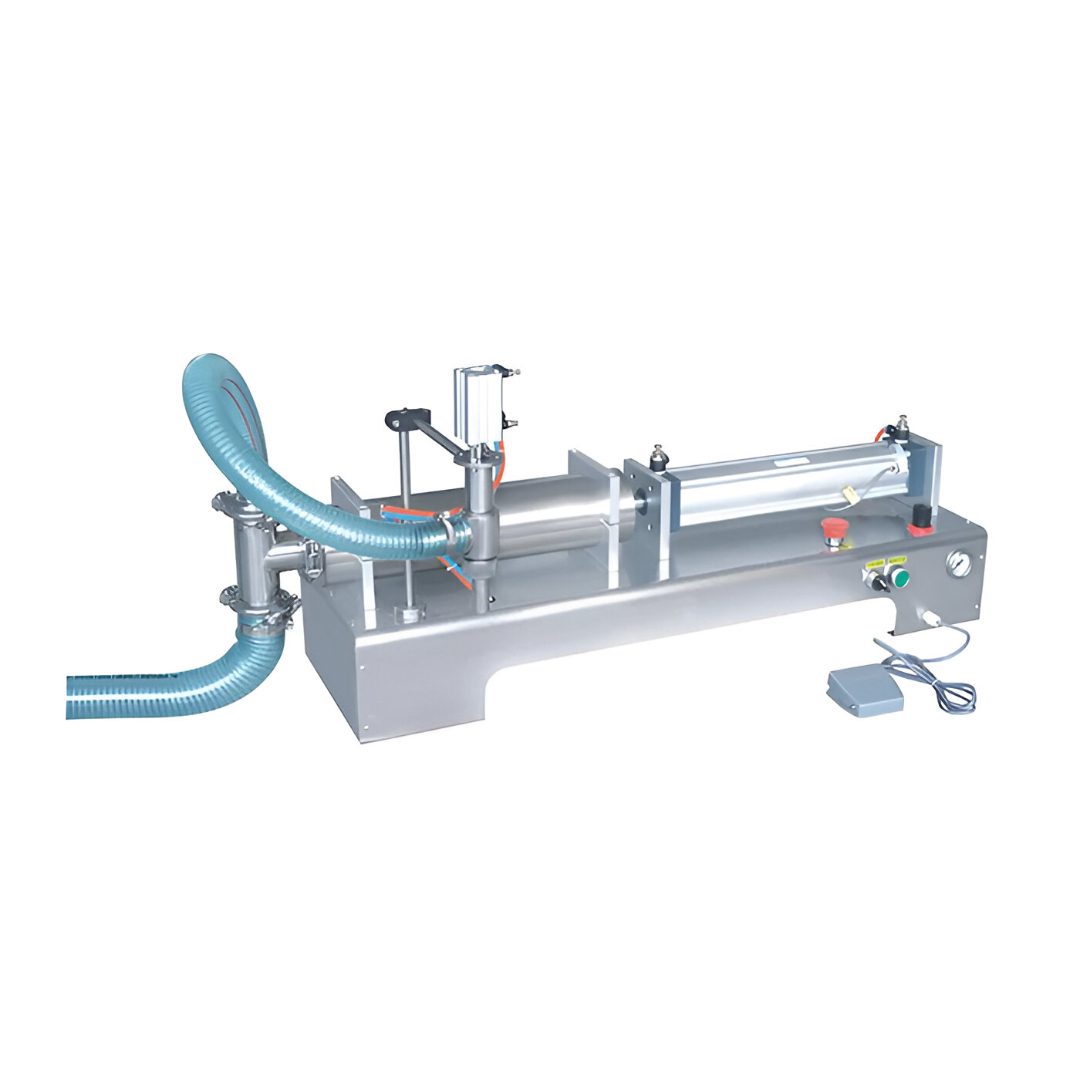

Single Head Liquid Filling Machine Available in : 10ml - 100ml / 50ml - 500ml / 100ml - 1000ml / 500ml - 5000ml
Technical Specification
| Model | SPS LF 100 | SPS LF 500 | SPS LF 1000 | SPS LF 5000 |
|---|---|---|---|---|
| Voltage (V/Hz) | 220 / 50 | 220 / 50 | 220 / 50 | 220 / 50 |
| Power | 20 | 20 | 20 | 20 |
| Air Compressor(Mpa) | 4-.6 | 4-.6 | 4-.6 | 4-.6 |
| Speed (m/min.) | 20 | 20 | 20 | 20 |
| Filling range (ml) | 10-100 | 50-500 | 100-1000 | 500-5000 |
| Filling capacity(times / min ) | 18-Oct | 18-Oct | 18-Oct | 18-Oct |
| Filling accuracy | 1% | 1% | 1% | 1% |
| Size (LxWxH) mm | 100x50x105 | 100x50x105 | 100x50x105 | -- |
| Weight (kg) | 35 | 35 | 40 | 60 |

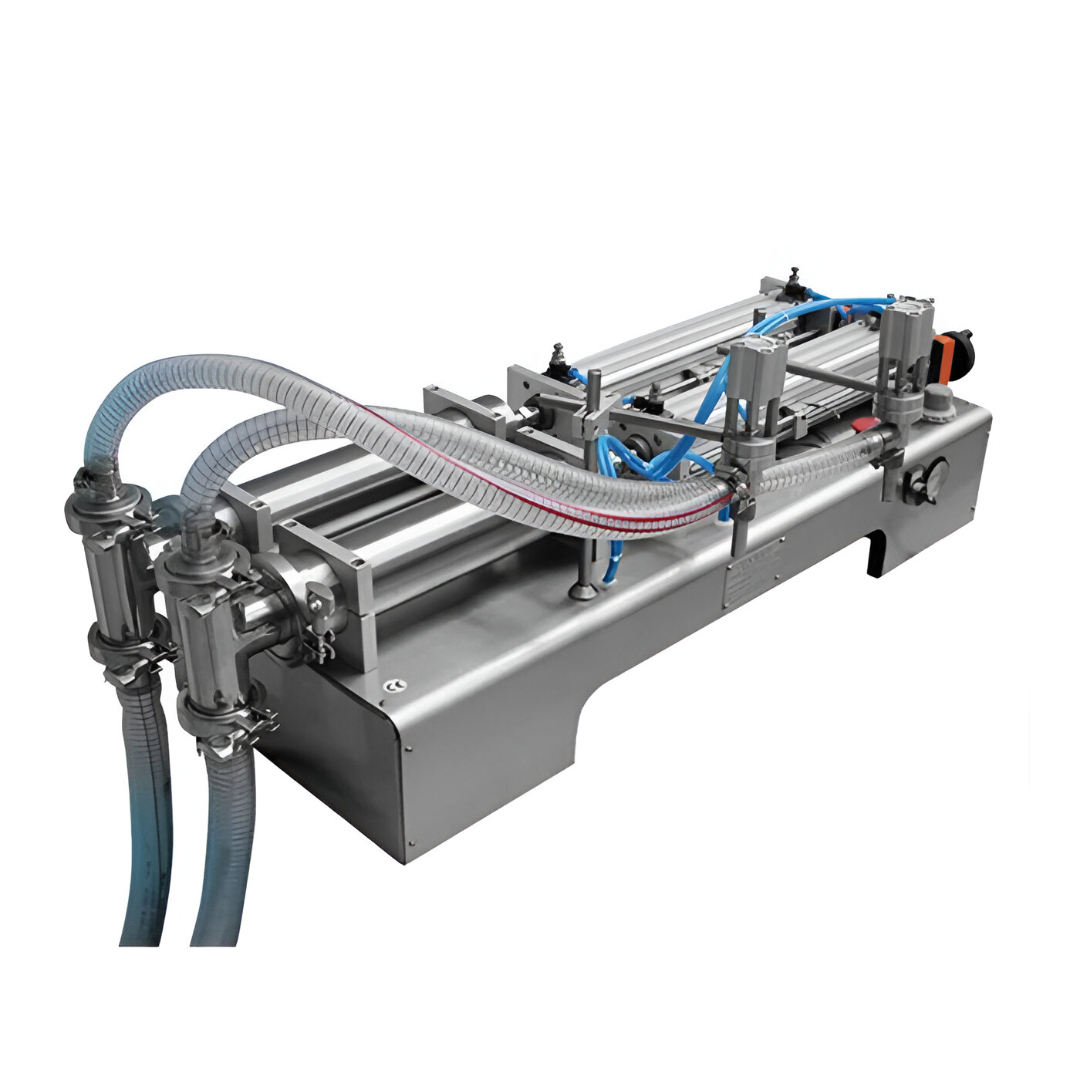

Double Head Liquid Filling Machine Available in : 10ml - 100ml / 50ml - 500ml / 100ml - 1000ml / 500ml - 5000ml
Technical Specification
| Model | SPS LF 100 D | SPS LF 500 D | SPS LF 1000 D | SPS LF 5000 D |
|---|---|---|---|---|
| Voltage (V/Hz) | 220 / 50 | 220 / 50 | 0.4 - 0.9 | 220 / 50 |
| Power | 20 | 20 | 20 | 20 |
| Air Compressor(Mpa) | 4-.6 | 4-.6 | 4-.6 | 4-.6 |
| Speed (m/min.) | 20 | 20 | 100-1000 | 20 |
| Filling range (ml) | 10-100 | 50-500 | 18-Oct | 500-5000 |
| Filling capacity(times / min ) | 18-Oct | 18-Oct | 0.50% | 18-Oct |
| Filling accuracy | 1% | 1% | 1% | 1% |
| Weight (kg) | 40 | 50 | 60 | 80 |

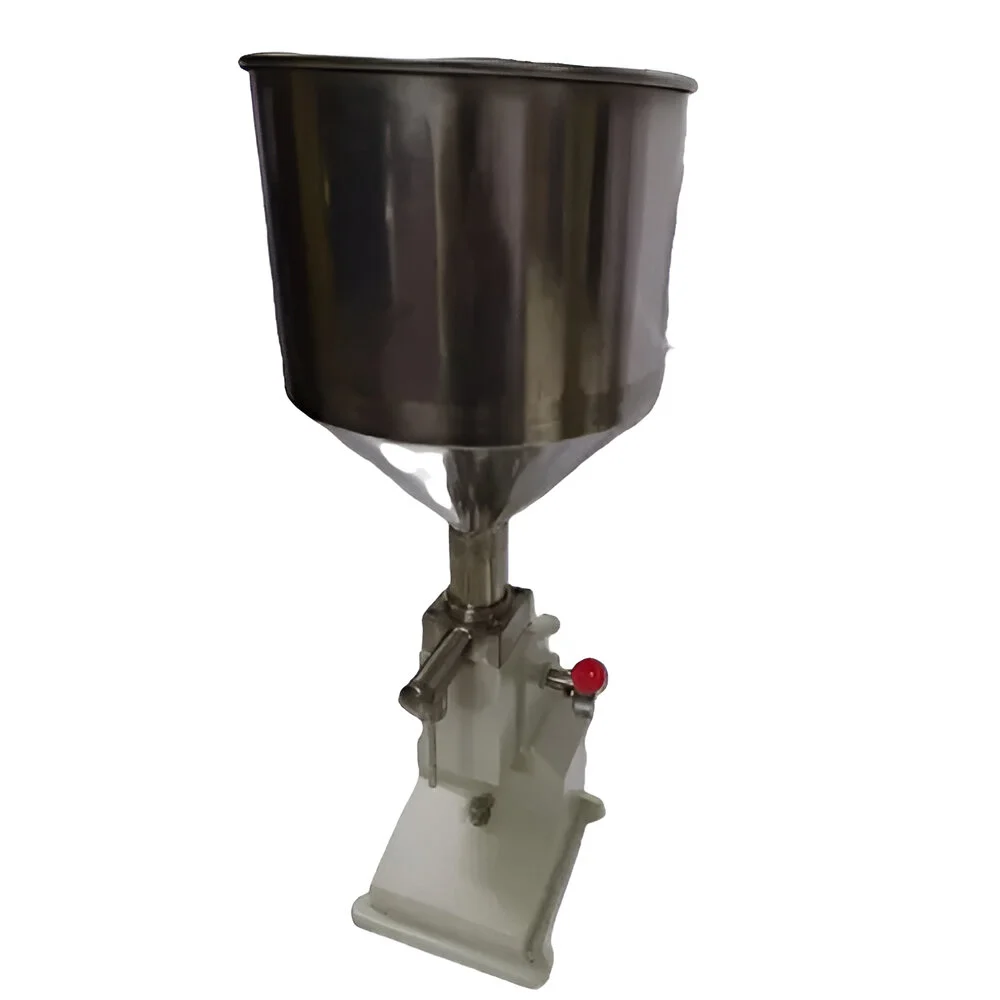

Manual Paste Filling Machine
Technical Specification
| Model | SPS MPF 50 |
| Filling Range(ml) | May-50 |
| Efficiency (Bottle/hour) | 400-500 |
| Hopper Capacity | 10 L |
| Net Weight(kg) | 13 |
| External Dimension (mm) | 270*270*700 |
| Weight (Kg) | 10 |
Single Head Paste Filling Machine Available in : 10ml - 100ml / 50ml - 500ml / 100ml - 1000ml / 500ml - 5000ml
Technical Specification
| Model | SPS PF 100 | SPS PF 100 | SPS PF 1000 | SPS PF 5000 |
|---|---|---|---|---|
| Voltage (V/Hz) | 220 / 50 | 220 / 50 | 220 / 50 | 220 / 50 |
| Power | 10 | 20 | 20 | 20 |
| Gas Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Filling range (ml) | 10-100 | 50-500 | 100-1000 | 500-5000 |
| Filling capacity(times / min ) | 18-Oct | 18-Oct | 18-Oct | 18-Oct |
| Filling accuracy | <= 1% | <= 1% | <= 1% | <= 1% |
| External Dimensions (L xW x H) (cm) | - | 100 x 50 x105 | 100 x 50 x105 | - |
| Net Weight(kg) | 32 | 35 | 40 | 75 |

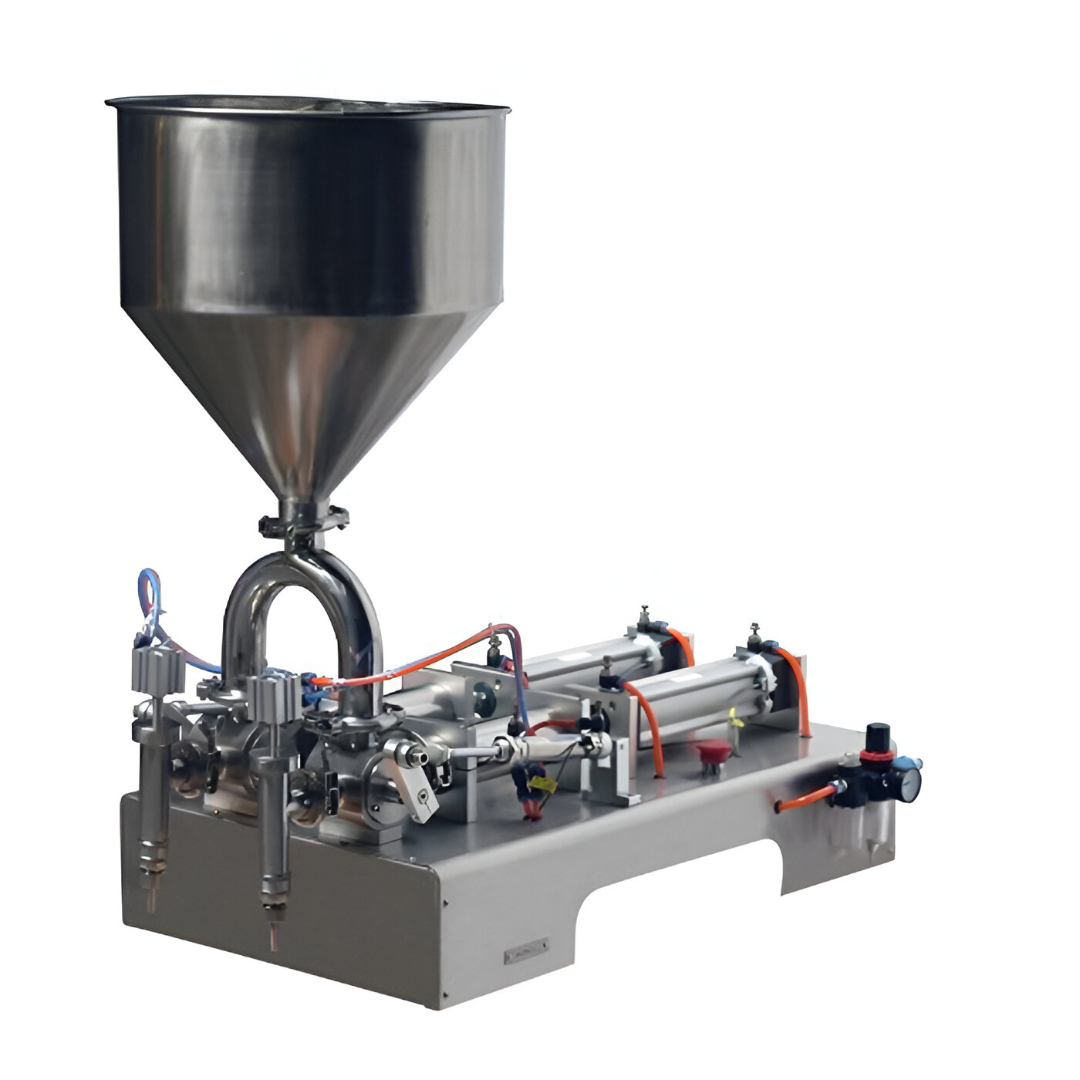

Double Head Paste Filling Machine Available in : 10ml - 100ml / 50ml - 500ml / 100ml - 1000ml / 500ml - 5000ml
Technical Specification
| Model | SPS PF 100 D | SPS PF 100 D | SPS PF 1000 D | SPS PF 5000 D |
|---|---|---|---|---|
| Voltage (V/Hz) | 220 / 50 | 220 / 50 | 100-1000 | 220 / 50 |
| Power | 10 | 20 | 4 ~ 6 kg | 20 |
| Gas Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0-50 | 0.4-0.6 |
| Filling range (ml) | 10-100 | 50-500 | ± 0.5% - ± 1% | 500-5000 |
| Filling capacity(times / min ) | 18-Oct | 18-Oct | 220V ± 5V | 18-Oct |
| Filling accuracy | <= 1% | <= 1% | 10 W | <= 1% |
| Net Weight(kg) | 45 | 45 | 1 A | 75 |

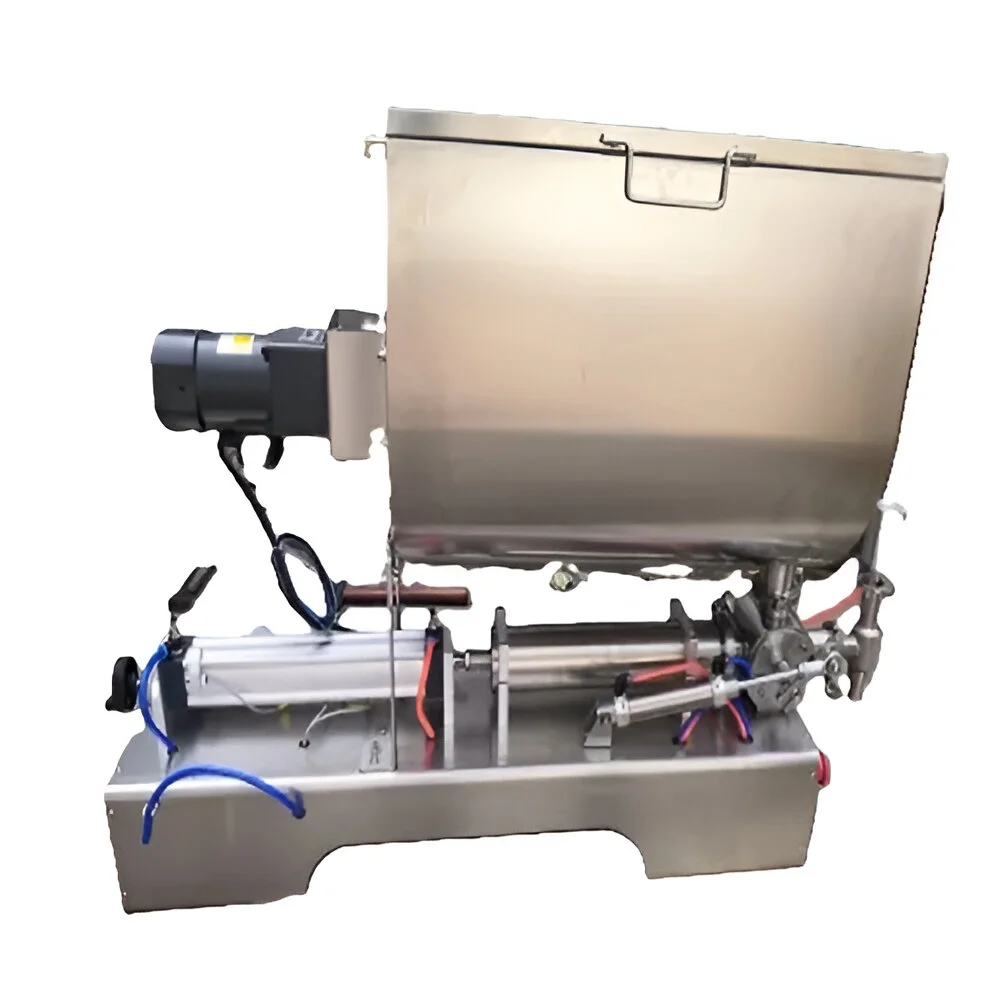

Pickle Filling Machine 100ML - 1000ML
Technical Specification
| Model | SPS P 1000 |
| Voltage(V/Hz) | 220/50 |
| Power(w) | 20 |
| Gas Pressure (Mpa) | Gas Pressure (Mpa) |
| Filling Range | 100-1000 |
| Hopper Capacity (L) | 90 |
| Filling Capacity(times/min) | 18-Oct |
| Filling Accuracy | <= 1% |
| External Dimensions (L xW x H) (cm) | 100 x 50 x105 |
| Net Weight(kg) | 40 |

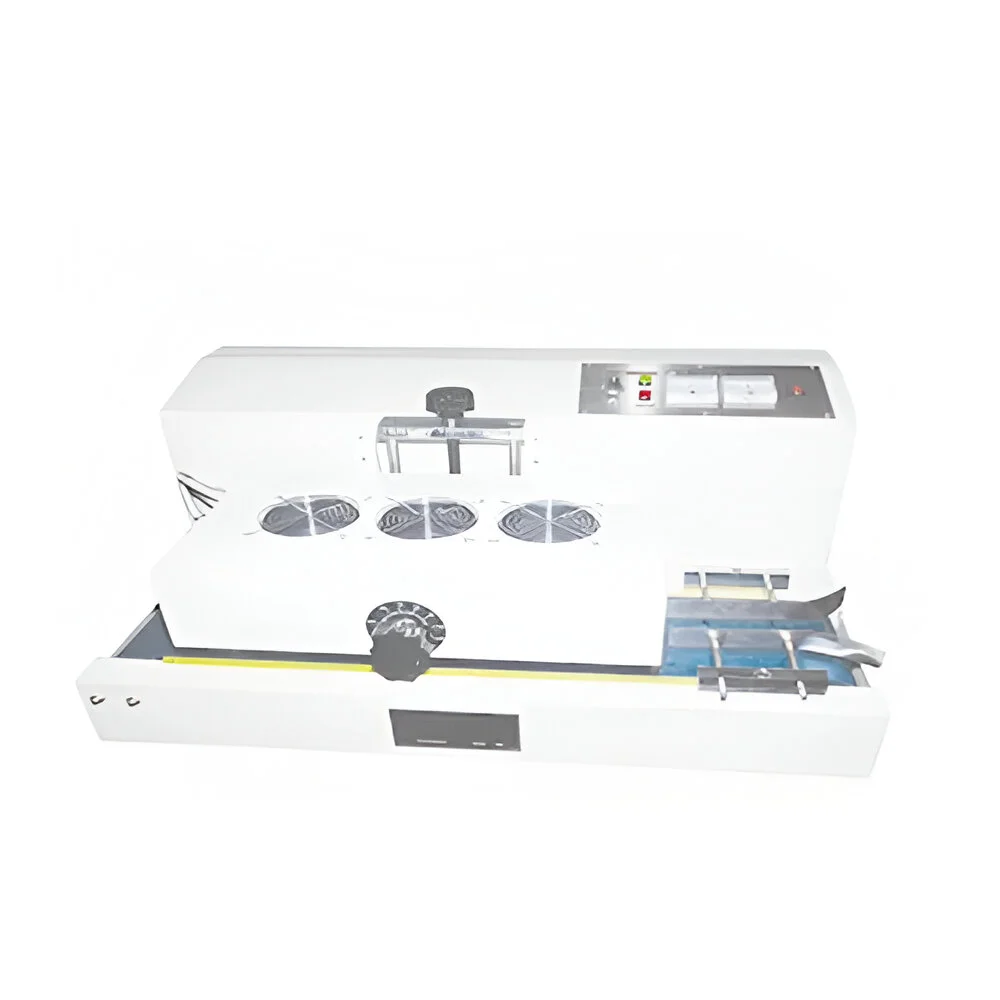

Continuous Online Induction Sealer Machine Hualian Available in : 20mm-130mm & 20mm-80mm
Technical Specification
| Model | SPS IS 200 |
| Voltage (V/Hz) | AC 220/50 |
| Power(W) | 2000W |
| Sealing diameter(mm) | Φ20-Φ130 |
| Available Height( mm) | 40-400 |
| Speed( m/mim) | 0-12 |
| Production Capacity (pcs/Min.) | 250 (Φ40mm flat capped and PE bottle) |
| External Dimensions (L×W×H) (mm) | 1150×480×400 |
| Net Weight( kg) | 38 |

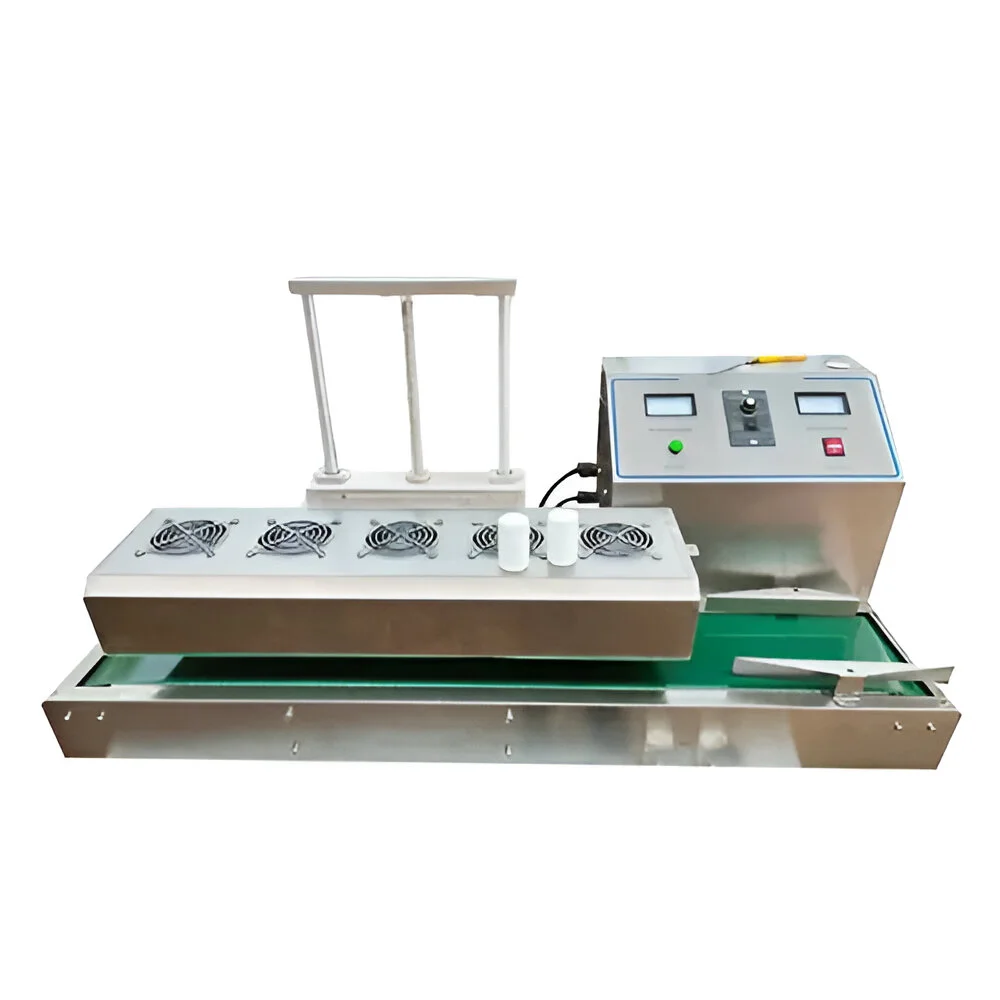

Continuous Online Induction Sealer Machine T-Series Available in : 20mm-130mm & 20mm-80mm
Technical Specification
| Model | SPS IS 200 T |
| Voltage (V/Hz) | AC 220/50 |
| Power(W) | 2000W |
| Sealing diameter(mm) | Φ20-Φ130 |
| Available Height( mm) | 40-400 |
| Speed( m/mim) | 0-12 |
| Production Capacity (pcs/Min.) | 250 (Φ40mm flat capped and PE bottle) |
| External Dimensions (L×W×H) (mm) | 1150×480×400 |
| Net Weight( kg) | 38 |
