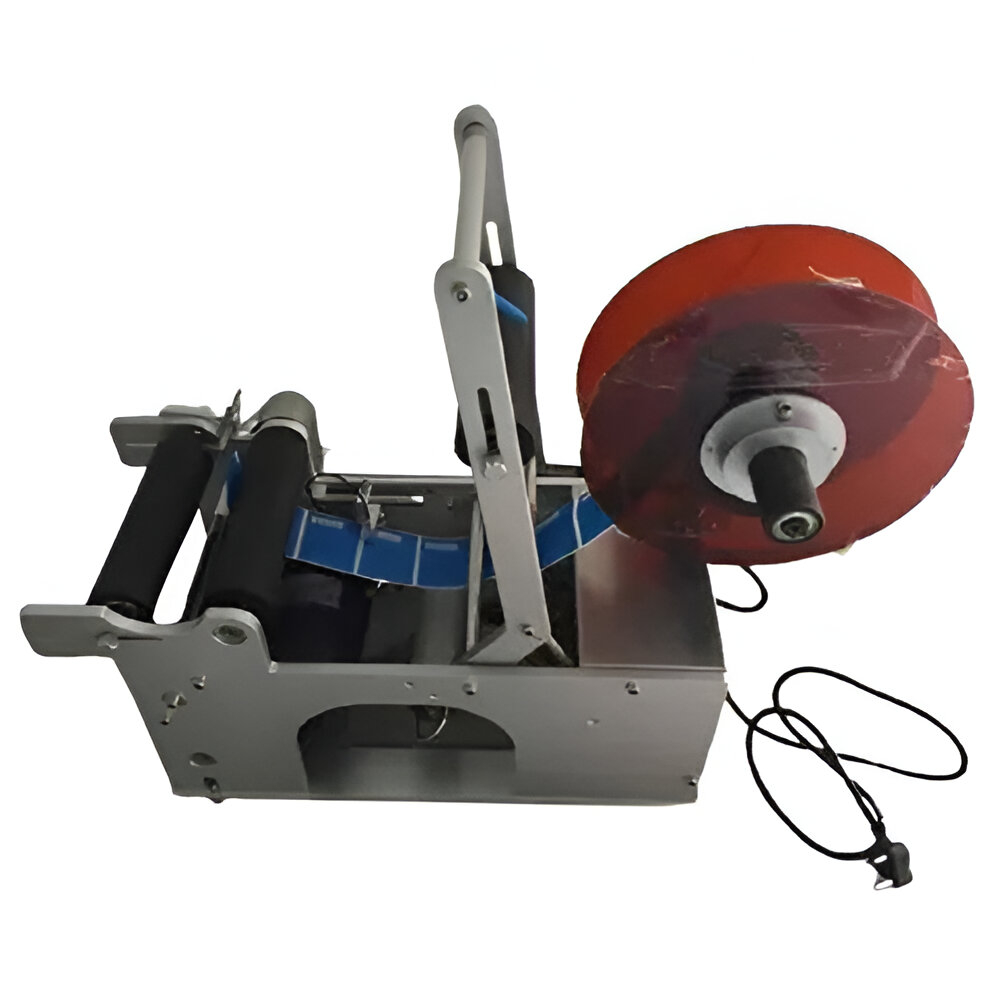

Manual Round Bottle Labeling Machine
Technical Specification
| Model | SPS MRBL |
| Labeling Speed | ≤ 30 pcs/ min. (according to size) |
| Labeling Accuracy | ±0.5 mm |
| Min. Label Roll inner Diameter | ≥75 mm |
| Max. Label Roll out Diameter | ≤ Ø 150 mm |
| Bottle Diameter | 15- 150 mm |
| Label Size (mm) | 10- 100 mm (W) |
| 10-300 mm (L) |

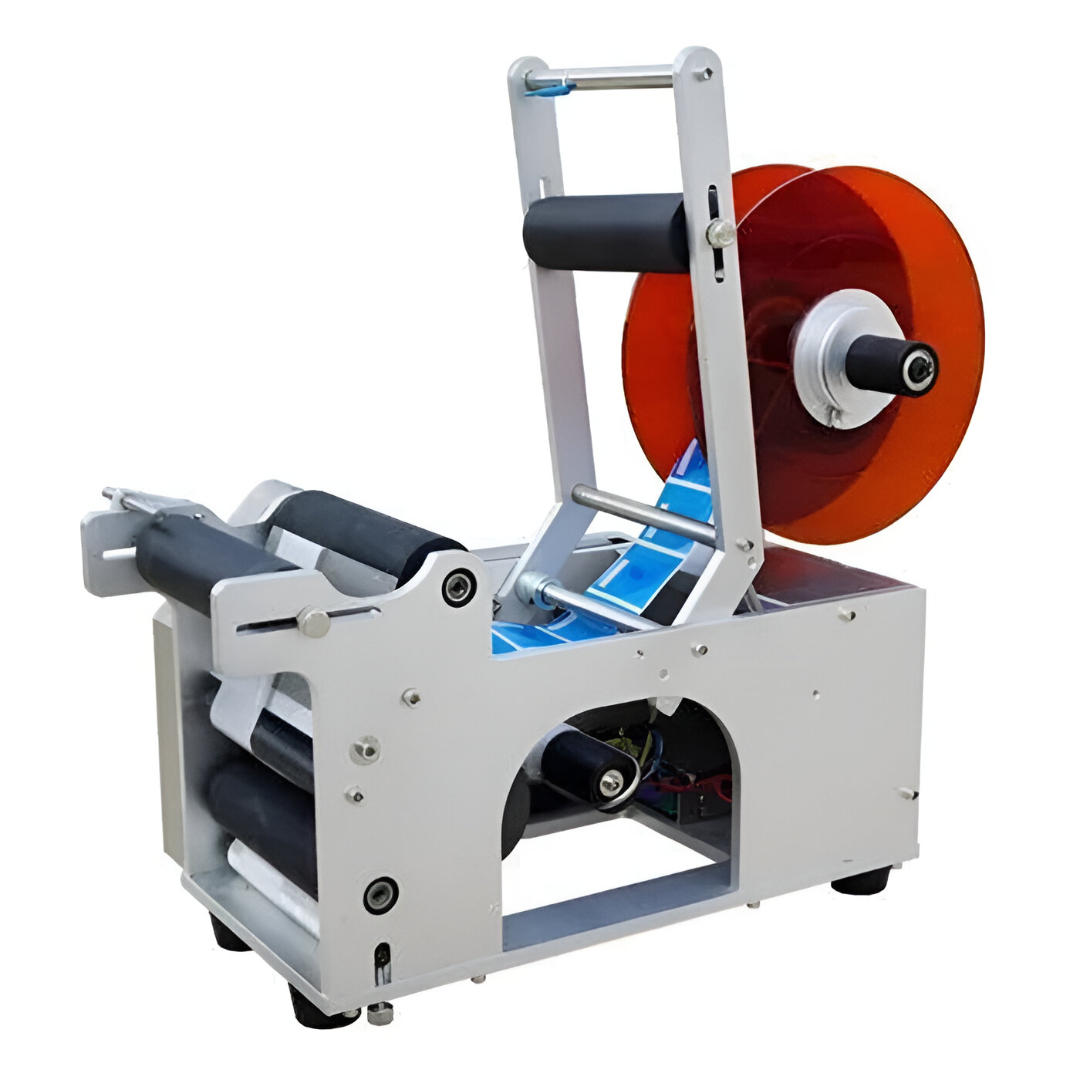

Semi Automatic Round Bottle Labeling Machine Economic
Technical Specification
| Model | SPS RBL R |
| Efficiency | ≤ 50pcs/ min (according to overall size of the label) |
| Precision | ± 1 mm |
| Applicable bottles of diameter | Ø 10- 130 mm |
| Label size | Width 8- 150mm Length 15 - 210 mm |
| Label roll | External diameter 300mm |
| Inner diameter: 75mm | |
| Power supply | 220 V, 50 Hz 120 W |
| Machine size (mm) | 650 (L) * 450 (W) * 450 (H) mm |
| Machine weight (Kg) | 19 Kg |
Semi Automatic Round Bottle Labeling Machine Dingye
Technical Specification
| Model | SPS RBL D |
| Efficiency | ≤ 50pcs/ min (according to overall size of the label) |
| Precision | ± 1 mm |
| Applicable bottles of diameter | Ø 10- 130 mm |
| Label size | Width 8- 150mm Length 15 - 210 mm |
| Label roll | External diameter 300mm |
| Inner diameter: 75mm | |
| Power supply | 220 V, 50 Hz 120 W |
| Machine size (mm) | 650 (L) * 450 (W) * 450 (H) mm |
| Machine weight (Kg) | 20 Kg |
Semi Automatic Round Bottle Labeling Machine With coding
Technical Specification
| Model | SPS RBL C |
| Efficiency | ≤ 50pcs/ min (according to overall size of the label) |
| Precision | ± 1 mm |
| Applicable bottles of diameter | Ø 10- 130 mm |
| Label size | Width 8- 150mm Length 15 - 210 mm |
| Label roll | External diameter 300mm |
| Inner diameter: 75mm | |
| Power supply | 220 V, 50 Hz 120 W |
| Machine size (mm) | 650 (L) * 450 (W) * 450 (H) mm |
| Machine weight (Kg) | 20 Kg |
Semi Automatic Round Bottle Labeling Machine with coding
Technical Specification
| Model | SPS FBL PN |
| Efficiency | ≤ 40pcs/ min (according to overall size of the label) |
| Precision | ± 1 mm |
| Applicable Bottles Of Diameter | Ø 10- 130 mm |
| Label Size | Width 10 - 140mm |
| Inner Diameter: 75mm | |
| Power Supply | 220 V, 50 Hz 120 W |
| Machine Size (mm) | 300 (L) * 200 (W) * 400 (H) mm |
| Air Supply | 0.4 - 0.6 Mpa |
| Machine Weight (Kg) | 25 Kg |
Fully Automatic Bottle Labeling Machine
Technical Specification
| Model | SP ALM |
| Labeling Accuracy | ± 1mm |
| Labeling Speed | 20-120 pieces/min |
| Applicable Product Diameter | 30-100mm |
| Applicable Label Size | Length 20-200mm, Width 20-120mm |
| Power Supply Voltage | 220/50hz 1000w |
| Net Weight | About 76kg |
| Equipment Size | 71220*950*808mm |
